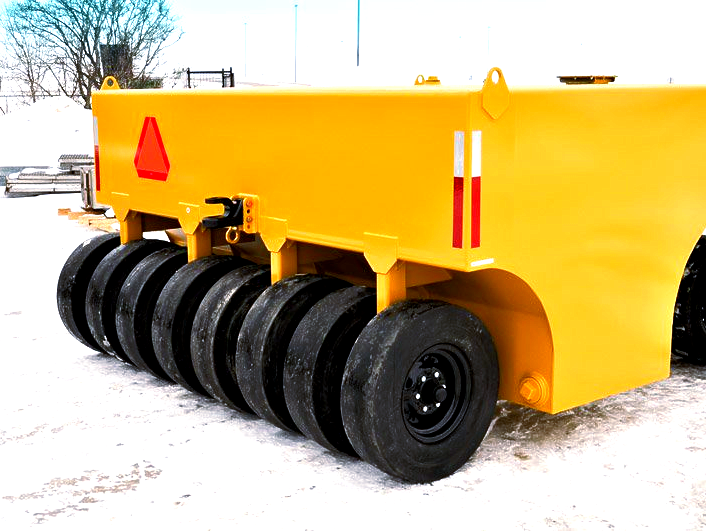

Overall Length: 11’2 - 11/16”
Overall Width: 7’8 - 1/16”
Overall Height: 4’ 3”
Ground Clearance: 7 - 1/8”
Packing Width: 7’ 6”
Cubic Ft. Cap. (filled level): 145
Packer Weight: 5,877 Ibs.
(Filled 16,099 lbs)

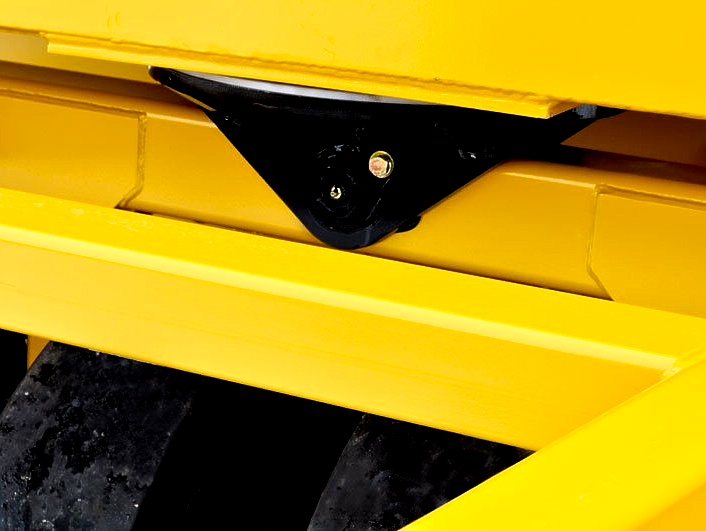

Overall Length: 11’2 - 11/16”
Overall Width: 7’8 - 1/16”
Overall Height: 5’ 3”
Ground Clearance: 7 - 1/8”
Packing Width: 7’ 6”
Cubic Ft. Cap. (filled level): 210
Packer Weight: 7,396 Ibs.
(16,510 lbs Filled with water)

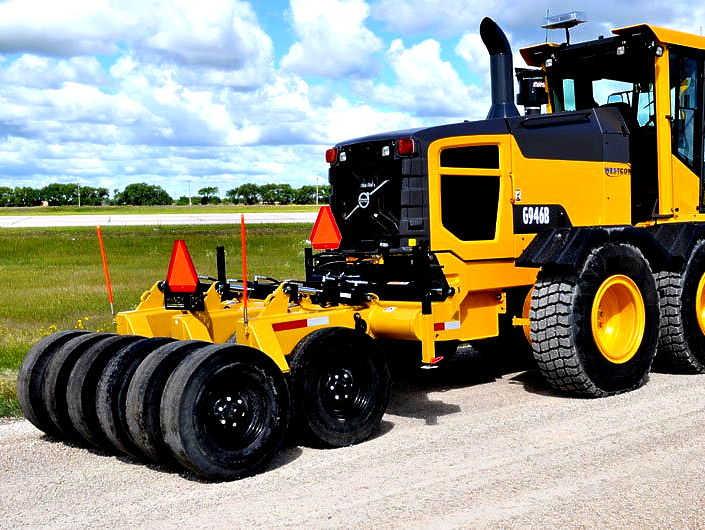

Overall Length: 97"
Overall Frame Width: 96"
Packing Width: 92"
Overall Height: 53"
Weight: 3,950 lbs.

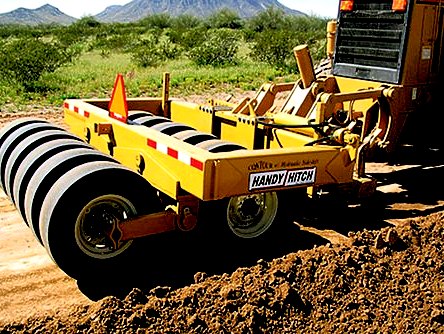

-6 x 6,000 lbs hub & spindles
-3 x 10" 3000 Psi hydraulic cylinders
-6 easy to reach grease zerks
-2 heavy-duty independent contour saddles on Hardened steel pins with 4” of bushings
-6 heavy-duty independent walking beams that pivot on hardened steel pins, with 5” of bushings
-12 individual 6000 lb hubs & spindle.
-12 individual axle-retaining plates
-2 self-contained jack stands
- 4” x 24” 3000-psi Hydraulic cylinder C/W 4000-psi hoses.
- ¼” UHMW lubricant impregnated nylon bearing plates.
-Weight: 4013.83 lbs.
Overall Length: 11’2 - 11/16”
Overall Width: 7’8 - 1/16”
Overall Height: 4’ 3”
Ground Clearance: 7 - 1/8”
Packing Width: 7’ 6”
Cubic Ft. Cap. (filled level): 145
Packer Weight: 5,877 Ibs.
(Filled 16,099 lbs)
Overall Length: 11’2 - 11/16”
Overall Width: 7’8 - 1/16”
Overall Height: 5’ 3”
Ground Clearance: 7 - 1/8”
Packing Width: 7’ 6”
Cubic Ft. Cap. (filled level): 210
Packer Weight: 7,396 Ibs.
(16,510 lbs Filled with water)
Overall Length: 97"
Overall Frame Width: 96"
Packing Width: 92"
Overall Height: 53"
Weight: 3,950 lbs.
-6 x 6,000 lbs hub & spindles
-3 x 10" 3000 Psi hydraulic cylinders
-6 easy to reach grease zerks
-2 heavy-duty independent contour saddles on Hardened steel pins with 4” of bushings
-6 heavy-duty independent walking beams that pivot on hardened steel pins, with 5” of bushings
-12 individual 6000 lb hubs & spindle.
-12 individual axle-retaining plates
-2 self-contained jack stands
- 4” x 24” 3000-psi Hydraulic cylinder C/W 4000-psi hoses.
- ¼” UHMW lubricant impregnated nylon bearing plates.
-Weight: 4013.83 lbs.
