4-IN-1
BUCKET
The Blue Diamond 4-in-1 bucket has set the standard with this extremely durable attachment. It will make a skid steer or compact track loader into a very versatile machine. Use as a grapple for moving logs or debris, push dirt with the blade like a dozer, dig with the bucket, or back drag with the open bucket like a box blade. Uses 2 powerful cylinders and can be greased on all pivot points. Pilot operated check valve to control drifting available. Other options available are teeth or a bolt-on-edge. The hose routing keeps the hoses out of the pinch point and the oversize pins and bushings with grease fittings will keep this attachment functioning effectively for many years!
DISPENSING
BUCKET
The Blue Diamond dispensing bucket is great for any flowable material, and works as anything from a feed bucket to a concrete bucket. It is available in 1/2 or 3/4 yard sizes and the hopper has splash guards around the top to contain material while traveling on rough terrain. The heavy duty chute is enclosed at the back to control the flow and can be removed for transportation or storage.
Features:
- Available in 1/2 or 3/4 yard capacity
- Standard chute or hydraulic door
- Slash guard
- Removeable chute for easy cleaning and transport
DUMPSTER
BUCKET
This extremely handy job site dumpster bucket is well worth its weight. Put it close to the work being done as an oversized trash bucket and just carry it to the large dumpster or when full. Also carry light weight product around jobsites or even tools. Other uses include carrying mulch, trees, shrubs, gravel, and sand.
FRONT DUMP
BUCKET
The Blue Diamond Front-Dump Bucket allows you to load trucks you normally could not reach. You gain an average of 5 feet in height and 3 feet in reach.
GENERAL PURPOSE
BUCKET

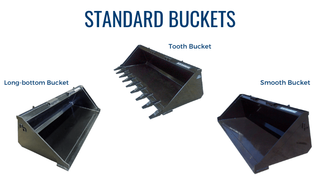

Our low-profile skid steer buckets are available in a variety of configurations. We offer bolt-on cutting edge, teeth, tooth bar, or long bottom. These well-engineered buckets offer a powerful breakout force and great visibility. Buckets up to 72” wide use 3/16” back and bottom and 78” and larger use 1/4”. All standard buckets are 20” tall and use a 3/4” by 6” cutting edge. The standard bottom is 30” front to back and the long bottom is 36”.
FEATURES INCLUDE:
- Low profile: 20″ high, 29″ deep
- Long bottom: 20″ high, 36″ deep
- High Capacity: 24″ high, 38″ deep
- 60″ – 72″, uses 3/16″ wrap
- 78″ – 84″, uses 1/4″ wrap
- 3/4″ cutting edge
HIGH BACK
SNOW & MULCH
BUCKET
The high back snow and mulch bucket features a higher back than our standard snow and mulch bucket with mesh for visibility. The reinforced floor and back give this bucket more durability for snow work when operating at higher speeds. The taller back keeps the material from rolling over onto your machine. This bucket is often used as a chicken litter bucket (or turkey litter) and for other wood shavings applications.
SEVERE DUTY
BUCKET
The severe duty bucket is one of the heaviest skid steer buckets made. The brutally heavy construction of these buckets allows them to be used in the most abusive conditions and on the largest skid steers available.
Features include:
- 1/2″ floor
- double layer 1/4″ back
- heavily gusseted quick attach
- tooth buckets use a 1″ x 8″ cutting edge
- available in low profile, long bottom, and high capacity
- Low profile: 20” tall, 29” deep
- Long bottom: 20” tall, 35” deep
UTILITY
BUCKET
This very rugged bucket offers more capacity than a standard low profile bucket yet does not get as cumbersome as a high capacity bucket. Designed for larger machines, it can handle the horsepower and not get overloaded as fast as some OEM buckets. The rolled back on the inside allows the bucket to clean out easier yet the rear heel still offers excellent back dragging and leveling capabilities. Now available in 72″ wide! This is our most popular skid steer bucket!!
Features include:
- ¼” material in the back and floor
- Heavy top cross bar and boxed in bottom corner for strength
- 22” tall and 34” floor
- Smooth model includes a bolt-on-edge
- Rolled back for easy clean out
SKID STEER SCREENING
BUCKET
The Blue Diamond® Screening Bucket is used for the screening, aerating, separating and mixing of soils, aggregates, woodchip, and compost. The efficient screening process is created by the star rotors agitating the material, causing the fines to flow through the rotating stars leaving the oversized material in the bucket. A hydraulic flow regulator is included to maintain correct RPM for poly stars.
FEATURES INCLUDE:
- 1” or smaller material will flow through
- Horizontal shafts, fitted with poly stars that rotate in the same upwards direction
- Hardened steel cutting edge
- 2-position mount plate
- Hoses and couplers included
- Mounts available to fit most machines
- 1-year warranty
SLAB
BUCKET
This extreme duty slab bucket is built for tough conditions! The heavy duty replaceable cast teeth and extra heavy duty cutting edge allow you to dig under a slab and get a firm grip on it. This attachment is much safer and more efficient than using pallet forks or a bucket.
SNOW & MULCH
BUCKET
The Blue Diamond snow and mulch bucket is a very popular bucket for a wide range of uses. This high volume bucket is also know as a chicken litter bucket but is used for snow removal, mulch, wood shavings, gravel, and a host of other applications where light weight material needs to be moved in bulk. Now available in 48″ and 60″ with a 1 yard heaped capacity! Not all snow and mulch buckets are equal. The Blue Diamond bucket uses gussets that tie the floor to the back of the bucket in the quick attach area. Snow removal and barn cleaning often see higher travel speeds increasing the force of the floor being driven back when hitting obstacles. This feature has increased bucket life substantially.
Features include:
- 26” high back
- 38” deep front to back
- Reinforced back and floor
- Pre drilled for bolt-on-edge option
- Available in 3/16” wrap or ¼” wrap
STUMP-SEVERE DUTY
BUCKET
The new Severe Duty stump bucket improves on our original stump bucket and gives Blue Diamond the absolute heaviest duty stump bucket in the industry! The long profile and curved bottom make quick work of large stumps and can pry up rocks with ease. It reaches far under the stump and tears the roots with the teeth located on the side of the bucket. Other uses for this skid steer stump bucket include prying up old fence posts, removing sidewalks and asphalt, and digging ditches and swales.
This brutal bucket is like having a crowbar on the front of your skid steer!
FEATURES INCLUDE:
- 443 lbs.
- 3 year warranty!
- 3 cast # 230 replaceable teeth
- 4″ square tube
- 56″ long
- Formed bottom with 1″ x 8″ cutting edge
- Heavily gusseted quick attach
- Reverse curled teeth up both sides
- Curved bottom for better leverage
- Narrow profile digs without wedging into the ground
- NEW chain slot tie downs for securing stumps for transfer
HIGH CAPACITY
UTILITY BUCKET
Features include:
- Available in 72”, 78”, 84”, 90”, and 96” widths
- Tooth or Smooth cutting edge
- Smooth comes standard with bolt-on cutting edge
- Safety steps for easy access
- ½” thick back wall
- 6 wear bars on the bottom
- Reinforced mount for extra capacity
